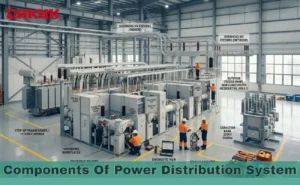

The components of power distribution system determine how reliably electricity reaches homes, factories, and commercial facilities across Africa, According to the IEA (2024), over 600 million people on the continent still lack reliable electricity access – making well-engineered power distribution components a strategic investment priority for utilities and project developers alike.

The strategic role of transformers in voltage regulation

Transformers are among the most critical main components of distribution system networks, governing how voltage is stepped down from transmission levels to usable consumer values, Selecting the right transformer directly impacts the efficiency and safety of every components of power distribution system project.

Read More : components of power distribution system

Primary and secondary transformer functions

The primary winding receives incoming high voltage – stepped down from 33 kV to 11 kV at the substation – while the secondary winding outputs utilization voltage (415 V or 240 V) to end consumers, Key selection criteria include:

• Voltage ratio and impedance per IEC 60076 standards
• Cooling method (ONAN / ONAF) for high-ambient-temperature African climates
• No-load and load losses to minimize long-term energy costs
• Insulation class and dielectric strength for humid or dusty environments

Primary secondary transformer configurations

The most widely deployed primary secondary transformer configuration across African networks is Dyn11 (delta-star), providing a neutral point for single-phase loads, zero-sequence fault current management, and compatibility with primary distribution voltage levels of 6.6 kV, 11 kV, and 33 kV.

Read More : Combiner Box vs. Junction Box | A Guide to Solar Safety

High performance switchgear and its impact on system reliability

Switchgear is the protective and switching core of any electrical distribution system components layout, determining how fast faults are isolated and power is restored after an interruption.

Switchgear types and IEC standards

Modern distribution switchgear falls into three main categories, each suited to different voltage levels and site conditions:

1. Air-Insulated Switchgear (AIS): Cost-effective for outdoor substations; widely used across Sub-Saharan Africa for primary distribution voltage levels.
2. Gas-Insulated Switchgear (GIS): Preferred for urban or confined substations; provides superior reliability in harsh, dusty, or high-humidity environments common across the continent.
3. Vacuum Circuit Breakers: Standard at medium-voltage levels (11–33 kV); fast fault interruption with minimal maintenance requirements – a significant advantage in remote distribution locations.

Procurement managers should verify IEC 62271-200 and IEC 62271-100 compliance for all distribution substation components to ensure long service life under variable load and environmental conditions.

Read More : Difference Between Primary and Secondary Transformer’s Winding

Circuit Protection Devices in power distribution system

Circuit protection is a non-negotiable layer within any components of power distribution system design, These devices detect abnormal conditions and isolate faults before cascading failures occur across the network.

Core protection devices and their roles

The main protection devices integrated into the distribution components layer include:

• Circuit Breakers (MCCBs / ACBs): Automatically interrupt fault current at rated breaking capacity; available in molded-case and air configurations for different current ratings.
• Fuses: Provide cost-effective overcurrent protection; ideal as backup protection for remote distribution line components across rural African grids.
• Surge Protective Devices (SPDs): Guard against lightning-induced voltage transients – a critical requirement given Sub-Saharan Africa’s high annual thunderstorm frequency.
• Ground Fault Protection Relays: Detect insulation failures and leakage currents, essential for personnel safety in industrial and commercial distribution environments.

According to IEEE Standard 1366-2012, over 80% of customer interruptions originate from failures at the distribution layer – reinforcing the importance of properly coordinated protection devices.

Smart monitoring devices for real time grid diagnostics

Integrating smart monitoring into the components of power distribution system enables utilities to shift from reactive repairs to predictive maintenance, measurably reducing outage duration and frequency.

IEC 61850 and Intelligent Electronic Devices

The IEC 61850 standard governs communication between IEDs within substations, enabling real-time data exchange across electrical distribution networks. Via GOOSE messaging, utilities can diagnose asset health remotely and respond to faults in under 4 milliseconds:

• IEDs: Collect voltage, current, and fault data; transmit via IEC 61850 for millisecond-level fault response
• Power Quality Analyzers: Continuously measure harmonics, voltage sags, and frequency deviations to optimize distribution line performance
• SCADA-Integrated Sensors: Enable centralized visibility across multiple substations for large geographic distribution networks

Automation in power distribution system

Automated reclosers, fault indicators, and remote-controlled switches reduce SAIDI – the core reliability benchmark defined in IEEE Std, 1366-2012 – by enabling faster fault isolation without field crew intervention.

Challenges of choosing components of power distribution system

Selecting the right component parts of the electrical distribution network for African markets involves navigating technical, financial, and environmental complexities unique to the region.

Key Procurement and Design Challenges

The most common challenges encountered during distribution system planning and procurement include:

1. Climate compatibility: Components must withstand temperatures above 45°C, humidity, dust, and salt corrosion – IP54 or higher ratings required for all outdoor installations
2. Grid voltage instability: African networks experience significant voltage fluctuation, demanding wide-tolerance transformers and switchgear with robust regulation capabilities
3. IEC vs. local standards: Some national utilities maintain legacy specifications requiring careful technical coordination to align with IEC standards
4. Total cost of ownership: Lifecycle analysis consistently favors IEC/IEEE-certified components over lower-cost alternatives with higher maintenance and failure rates
5. Supply chain lead times: GIS switchgear and large power transformers carry 16–24 week lead times, requiring careful project scheduling

Preventive maintenance strategies for extending component

A structured preventive maintenance program significantly extends the service life of all components of power distribution system assets and reduces the risk of costly emergency failures across the network.

Maintenance schedule by component type

Effective maintenance programs for electrical distribution system components are organized by equipment category and risk level:

Component	Maintenance Activity	Recommended Interval
Distribution Transformer	Oil sampling, insulation resistance test, thermal imaging scan	Every 12 months
Circuit Breaker	Contact resistance, timing test, SF6 gas level check	Every 12–24 months
Switchgear (GIS / AIS)	Visual inspection, partial discharge test, mechanism lubrication	Every 12 months
Protection Relays / IEDs	Functional test, firmware update, calibration check	Every 24 months
Surge Protective Devices	Visual inspection, degradation indicator check	Every 6 months

Condition-based maintenance with IEC 61850

For substations with IEC 61850-enabled IEDs, condition-based maintenance outperforms fixed-interval schedules – IEDs continuously track contact wear, oil temperature, and gas density levels, triggering maintenance only when thresholds are approached.

Chkhele’s components of power distribution system

Chkhele delivers certified, high-performance components of power distribution system engineered for the specific demands of African energy infrastructure – from large industrial grids to rural commercial power distribution system projects.

Why Choose Chkhele

Every product in the Chkhele portfolio is tested to IEC and IEEE standards, ensuring compatibility with regional grid conditions and long-term reliability:

• Full IEC-certified range: Distribution transformers, medium-voltage switchgear, protection relays, and smart IEDs – compliant with IEC 60076, IEC 62271, and IEC 61850
• Africa-optimized engineering: Components specified for high-temperature, high-humidity, and high-dust environments, with IP ratings matched to African deployment conditions
• Engineering support: Specification assistance, load flow analysis, and system integration guidance – reducing procurement risk on every project
• Reliable supply chain: Predictable lead times for critical power distribution components across Sub-Saharan and North Africa

For procurement managers seeking components of power distribution system that meet international standards without compromise, Chkhele is the partner of choice across the continent.

What is the difference between a primary and secondary distribution system?

The primary distribution system operates at medium voltage (3.3–33 kV) supplying large loads, while the secondary system steps down to utilization voltage (240/415 V) for end consumers.

Why should procurement managers prioritize IEC and IEEE certified components?

IEC and IEEE certification guarantees tested safety, performance, and interoperability – reducing failure risk, simplifying maintenance, and satisfying insurance and regulatory requirements on African infrastructure projects.

Sources

1. IEA – Access to Electricity 2024: https://www.iea.org/commentaries/access-to-electricity-stagnates-leaving-globally-730-million-in-the-dark
2. IEEE Std. 1366-2012 – Electric Power Distribution Reliability Indices: https://standards.ieee.org/ieee/1366/7243/
3. IEC 61850 – Communication Networks for Power Utility Automation: https://iec61850.dvl.iec.ch/
4. Springer – Power Distribution System Reliability Assessment, Ethiopia (2024): https://link.springer.com/chapter/10.1007/978-3-030-43690-2_28
5. OSHA – Illustrated Glossary: Distribution Systems: https://www.osha.gov/etools/electric-power/illustrated-glossary/distribution-system
6. IEEE Spectrum – Expanding Electricity Access in Sub-Saharan Africa (2024): https://spectrum.ieee.org/electricity-access-sub-saharan-africa

Gas insulated switchgear maintenance is essential for any high-voltage power system designed to deliver long-term reliability. GIS units are built for a service life of 30 to 40 years, but reaching that lifespan depends entirely on structured inspection routines and proactive servicing. Without a consistent maintenance program, even the most advanced GIS installation is vulnerable to failures that are costly, disruptive, and preventable.

What is Gas Insulated Switchgear?

Gas insulated switchgear is a sealed, metal-enclosed electrical assembly that uses SF6 gas as its primary insulating medium. All live components are housed within pressurized aluminum compartments, protecting them from dust, moisture, and environmental contaminants.

According to Liyond, GIS equipment volume is typically 60% to 90% smaller than traditional air-insulated switchgear , making it the preferred solution for urban substations, offshore platforms, high-rise buildings, and space-constrained industrial facilities.

Importance of Gas Insulated Switchgear Maintenance for Grid Reliability

A structured gas insulated switchgear maintenance program is a grid reliability requirement, not an optional measure. GIS is widely regarded as low-maintenance equipment, but consistent performance depends on strict adherence to inspection protocols.

Neglecting maintenance leads to:

• Unplanned outages with significant operational and financial consequences
• SF6 gas leakage , carrying serious environmental risk, given SF6’s global warming potential of nearly 24,000 times that of CO2
• Accelerated insulation and mechanical degradation
• Non-compliance with IEC 62271-203 safety and performance standards

Read More : Combiner Box vs. Junction Box | A Guide to Solar Safety

Key Components of GIS That Require Regular Inspection

Effective gas insulated switchgear maintenance begins with identifying which components carry the highest failure risk. Each element plays a specific role in system integrity.

Components requiring priority inspection:

• Circuit breakers , subject to contact erosion and mechanical wear across switching cycles
• Disconnectors , inspected for alignment and mechanical condition; provide physical isolation for safe maintenance access
• Earthing switches , ground conductors after isolation; critical for personnel safety during servicing
• Bus bars , monitored for partial discharge activity and gas compartment integrity
• Current and voltage transformers , tested for measurement accuracy and insulation condition
• SF6 gas compartments , checked for pressure levels, moisture content, and seal leakage

Read More : Choosing Combiner Boxes For Solar System | Chkhele Guide

Common Failure Modes in Gas Insulated Switchgear Units

Understanding how GIS units fail allows maintenance teams to prioritize diagnostics at the right intervals. The most frequently recorded failure modes are:

1. SF6 gas leakage , the leading cause of GIS degradation; detected through pressure monitoring and high-precision leak detectors
2. Moisture ingress , compromises insulation and accelerates formation of toxic SF6 by-products
3. Partial discharge activity , internal defects that escalate into full insulation breakdown if undetected
4. Mechanical wear , particularly in circuit breaker drive systems after high switching cycle counts
5. Contact degradation , gradual erosion reduces breaker interrupting capacity over time

Read More : Low Voltage Switchgear Products

Electrical Testing Procedures for Gas Insulated Switchgear Breakers

Electrical testing forms the diagnostic core of any gas insulated switchgear maintenance program. All procedures must be carried out by qualified engineers following IEC and IEEE standards.

Contact Resistance Measurement

Identifies wear or contamination on breaker contacts. Elevated resistance readings indicate the need for inspection or replacement before performance is affected.

Insulation Resistance Testing

Detects moisture ingress or material degradation across insulation interfaces. A drop in values serves as an early warning of developing faults.

Partial Discharge Testing

Locates internal defects within gas compartments before failure occurs. It is one of the most sensitive diagnostic tools available for GIS condition assessment.

Circuit Breaker Timing Tests

Verify that opening and closing operations meet manufacturer specifications. Timing deviations point to wear in the operating mechanism or control circuit issues.

Read More : Metal-Clad Switchgear vs Metal-Enclosed

Best Practices for Moisture and Purity Testing of SF6 Gas

SF6 gas condition directly determines the insulating and arc-quenching performance of any GIS installation. Degraded gas is among the most common contributors to premature equipment failure.

Recommended practices include:

• Measuring dew point using certified analyzers to detect moisture within gas compartments
• Testing SF6 purity to identify contamination from arc decomposition by-products
• Recording gas density readings against manufacturer alarm and lockout thresholds , if pressure drops to lockout level, the affected bay must be immediately de-energized
• Reclaiming or replacing gas below acceptable purity standards using approved handling equipment
• Documenting all measurements with compartment references for long-term trend analysis

Routine SF6 monitoring is both a maintenance obligation and an environmental compliance requirement under IEC 62271-203.

Why Chkhele is the Best Manufacturer of Gas Insulated Switchgear

Chkhele designs gas insulated switchgear built for extended service life, minimal maintenance intervals, and full compliance with international standards. Their units support condition-based maintenance programs , giving operators the monitoring infrastructure needed to move from reactive repairs to predictive servicing. With technical support available across global markets, Chkhele delivers the manufacturer-level expertise that complex GIS installations demand.

FAQ

How often should GIS maintenance be performed?

 Routine visual inspections are recommended at least twice a year, with critical systems requiring quarterly checks. Full diagnostic assessments , covering electrical testing and SF6 gas analysis , are typically conducted every one to three years, depending on operating conditions and manufacturer O&M guidelines.

Why is SF6 gas monitoring critical in GIS maintenance?

SF6 is the primary insulating and arc-quenching medium in GIS equipment. Any drop in gas pressure, increase in moisture content, or reduction in purity directly compromises the system’s ability to insulate live components and interrupt fault currents safely. Regular gas analysis prevents minor leakage from developing into a critical failure.

What are common diagnostic tests used in GIS maintenance?

 Standard diagnostics include partial discharge measurement, contact resistance testing, SF6 gas purity and moisture analysis, insulation resistance testing, and circuit breaker timing analysis , all performed in accordance with IEC 62271-203 and manufacturer specifications.

When evaluating Combiner Box vs. Junction Box, most installers discover these two components serve entirely different roles , despite both appearing inside the same solar installation, Choosing the wrong one compromises safety, triggers inspection failures, and increases long-term costs, This guide covers every difference, every use case, and every selection factor you need.

What is Combiner Box?

While both components serve as connection points, understanding the Combiner Box vs, Junction Box differences is crucial for system design, A Combiner Box is an electrical enclosure that collects DC outputs from multiple solar panel strings and merges them into a single protected output before the inverter, It acts as the central hub of your solar array, organizing multiple power streams into one clean, safe circuit.

The following are its core functions:

• Combines 2 to 24 panel strings into one DC output
• Provides per-string overcurrent protection via fuses or circuit breakers
• Includes surge protection device (SPD) against lightning and voltage spikes
• Houses a DC isolator switch for safe maintenance access
• Offers real-time per-string monitoring in smart models

Read More : Choosing Combiner Boxes For Solar System | Chkhele Guide

What is Junction Box?

In the debate of Combiner Box vs. Junction Box, the latter is much simpler in scope, A Junction Box is the small sealed enclosure mounted on the back of every individual solar panel, Its sole purpose is to protect the panel’s internal wire connections from environmental exposure; unlike the combiner box, it does not combine circuits, offer overcurrent protection, or perform any system-level function.

Junction Box internal components include:

• Bypass diodes , redirect current around shaded cells to prevent hot spots and maintain panel output
• MC4 connectors , industry-standard weatherproof connectors linking the panel to string wiring
• Sealed enclosure , protects internal terminations from moisture, dust, and UV exposure

Read More : Low Voltage Switchgear Products

Combiner Box vs. Junction Box

The following is a direct comparison across all key dimensions:



Feature	Combiner Box	Junction Box
Installation Level	System level	Panel level
Primary Function	Combines multiple strings	Protects panel wire connections
Overcurrent Protection	Per-string fuses / breakers	Not available
Surge Protection (SPD)	Built-in	Not available
DC Disconnect Switch	Included	Not available
String Monitoring	Smart models	Not available
Minimum IP Rating	IP65	IP54
System Size	3+ strings, medium to large	Every panel, any system size

The Role of Combiner Box in Solar System

The Combiner Box vs. Junction Box distinction becomes clearest when you examine how combiner boxes operate across different system scales.

• Residential (3–10kW): Simplifies rooftop wiring, reduces cable penetration points, and adds overcurrent protection even where direct inverter connection is technically possible
• Commercial & Industrial (100kW+): Serves as a critical system management node, managing dozens of parallel strings across multiple inverters efficiently
• Utility-Scale: Distributed across massive arrays to reduce long cable runs, cut material costs, and enable fast fault isolation across hundreds of acres

Read More : Metal-Clad Switchgear vs Metal-Enclosed

Choosing Combiner Box vs. Junction Box

Choosing the right component depends on your specific system requirements and safety standards, Here is the decision framework to help you distinguish between the Combiner Box vs. Junction Box based on your project scale:

1. Your system has three or more parallel panel strings
2. System size exceeds 3kW and requires safety code compliance
3. You need per-string fault detection and surge protection
4. The installation is commercial, industrial, or utility-scale

Use a Junction Box when:

1. You need panel-level wire connection protection only
2. Your system uses one or two strings connecting directly to the inverter
3. General electrical wiring requires simple, protected connection points

Internal Components of a Solar Combiner Box and Their Purposes

Every reliable combiner box is built around heavy-duty internal components designed for system-level management, Unlike the basic internal wiring of a Junction Box, the Combiner Box vs. Junction Box hardware layout includes:

• Busbars , consolidate all string inputs into a single output; sized for worst-case current and temperature
• DC String Fuses / Circuit Breakers , one per string; isolates faults instantly without shutting down the entire array
• Surge Protection Device (SPD) , Type 2 for standard rooftops; Type 1+2 for high-lightning-risk sites per IEC 61643-31
• DC Isolator Switch , enables full safe disconnection for maintenance without system shutdown
• Blocking Diodes , prevent reverse current flow from healthy strings into a faulty string
• Smart Monitoring Module , live per-string data via RS-485 or Ethernet to inverter or SCADA

Global Safety Standards for Combiner Box vs. Junction Box

Compliance with international standards is a legal and professional requirement for any installation, When evaluating the Combiner Box vs. Junction Box from a regulatory perspective, the standards differ significantly due to their different roles in system safety.

Combiner Box Standards:

• UL 1741 , mandatory in North America for all PV system components
• IEC 61439-2 , governs structural and electrical safety of the enclosure globally
• IEC 61643-31 , covers SPDs specifically designed for photovoltaic applications
• NEC Article 690 , governs overcurrent protection, grounding, and rapid shutdown for all US grid-tied systems

Junction Box Standards:

• IEC 61215 , photovoltaic module design qualification and type approval
• IEC 62852 , connector safety and compatibility for MC4 connectors
• IP54 minimum , required ingress protection; IP65 preferred for harsh outdoor environments

Expert Advice for Selecting Premium Combiner Box

Before specifying any combiner box, professionals evaluate these critical quality indicators:

1. Match IP rating to environment , IP65 for standard outdoor; IP66/IP67 for coastal or industrial sites
2. Size 25% larger than current string count , avoids costly replacement when the system expands
3. Prioritize per-string monitoring for systems above 20kW , catches faults weeks before they impact production
4. Verify certifications with traceable test reports , a logo on a datasheet without documentation is not sufficient
5. Inspect enclosure materials , UV-stabilized polycarbonate or powder-coated steel are the professional benchmarks
6. Check terminal torque specifications , loose terminals cause hotspots, arc faults, and premature failures

Advantage of Chkhele’s Combiner Boxes

In a market flooded with generic options, Chkhele’s combiner boxes stand out with engineering built to deliver 25 years of reliable performance, While a standard junction box offers basic protection, Chkhele provides a sophisticated system-level solution that redefines the Combiner Box vs. Junction Box standard:

• Certified globally , UL 1741, IEC 61439-2, and IEC 61643-31 with traceable test reports; full NEC 690 compliance built in from day one
• All-in-one protection , DC string fuses, Type 2 SPD, DC isolator, blocking diodes, and IP65+ sealed enclosure in one pre-tested unit
• Smart monitoring included , per-string current monitoring via RS-485 or Ethernet; faults detected automatically before they become production losses
• Built for harsh environments , IP66-rated sealing, UV-stabilized materials, and corrosion-resistant hardware for desert heat, coastal humidity, and everything in between
• Scalable for every project , compact 4-string residential units to 32-string utility-grade models, all designed for future expansion without full replacement

FAQ

When does a Combiner Box become mandatory?

A Combiner Box becomes mandatory when your system has three or more parallel panel strings. At this threshold, back-feed current from healthy strings into a faulty one creates a fire risk that only per-string overcurrent protection prevents, NEC Article 690 also mandates combiner boxes for all grid-tied systems installed on or within buildings.

Is the Combiner Box weather-resistant?

Yes , any professional combiner box for outdoor use carries a minimum IP65 rating, guaranteeing complete dust protection and water resistance. For coastal or industrial environments, IP66 or IP67 is recommended, UV-stabilized enclosure materials ensure reliable performance across a full 25-year system lifetime.

What is the benefit of a Smart Combiner Box?

A smart combiner box adds per-string current and voltage monitoring to all standard protection functions, It detects faults, blown fuses, and shading mismatches automatically , cutting diagnostic time from hours to minutes and protecting long-term energy yield across commercial and utility-scale installations.

Combiner boxes for solar system installations are the unsung heroes of any photovoltaic setup, quietly managing power flow, protecting your investment, and keeping your entire array running at peak efficiency, Whether you’re planning a rooftop residential system or a large-scale commercial array, understanding how combiner boxes work is the first step toward a safer, more efficient solar installation, This guide walks you through everything: types, components, applications, safety standards, and how to choose the right one.

What is Combiner Boxes for Solar System?

A combiner box for solar system is an electrical enclosure installed between your solar panel array and the inverter, Its core job is straightforward: it collects the DC output from multiple solar panel strings and merges them into a single, unified output before sending power to the inverter.

Think of it as the central hub of your solar installation, where multiple power streams meet, get protected, and move forward as one.

How Does It Work Inside?

Each solar string feeds its positive and negative DC cables into dedicated input terminals inside the box, Those terminals connect through busbars, conductive metal strips, to a single positive and negative output, That combined output then runs to your inverter, Every input string has its own fuse or circuit breaker, so if one string develops a fault, only that string gets isolated, the rest of the system keeps producing power without interruption.

Read More : Low Voltage Switchgear Products

DC vs. AC Combiner Box

Not all combiner boxes handle the same type of current, DC combiner boxes are installed before the inverter, combining raw solar output from panel strings, AC combiner boxes, on the other hand, are used in microinverter systems, where each panel already has its own inverter and the box combines AC outputs instead, Knowing which type your system needs is fundamental before making any purchasing decision.

Where to Use Combiner Boxes in Solar Systems?

Combiner boxes are not a one-size-fits-all component, their value scales directly with system size and complexity. Here’s a breakdown of where they belong:

Residential Solar Systems

In home installations with more than three panel strings, a combiner box becomes highly beneficial, It reduces the number of cables running to the inverter, keeps wiring organized, and adds a layer of overcurrent protection that protects your inverter from damage caused by a single faulty string, Systems with fewer than three strings can connect directly to the inverter without one, but as your array grows, so does the need.

Commercial & Industrial Installations

Large commercial rooftops and industrial facilities often run dozens of panel strings simultaneously, In these environments, combiner boxes are not optional, they are essential, They streamline wiring complexity, cut material and labor costs significantly, and make maintenance far more manageable by centralizing all protection devices in one accessible location.

Utility-Scale Solar Farms

At utility scale, combiner boxes are distributed strategically across massive arrays, each one managing a cluster of strings before feeding power into central inverters, Without them, the wiring logistics of a megawatt-scale plant would be unmanageable.

EV Charging Stations with Solar Integration

A growing application for combiner boxes for solar system setups is in solar-powered EV charging stations, Here, the box manages multiple solar string inputs and directs clean, combined DC power toward the charging infrastructure efficiently and safely.

Read More : Metal-Clad Switchgear vs Metal-Enclosed

How to Choose Combiner Boxes for Solar System?

Choosing the right combiner box requires matching the box’s specifications to your system’s exact requirements, Here are the key selection criteria every installer and system owner should evaluate:

System Voltage Rating

The combiner box must be rated for a voltage equal to or exceeding your system’s maximum open-circuit voltage (Voc), This value is calculated by multiplying the Voc of a single panel by the number of panels connected in series per string, Never select a box with a lower voltage rating than your system’s maximum.

Number of String Inputs

Count your panel strings and choose a box that accommodates them, with room to grow, Industry best practice recommends sizing your combiner box at least 25% larger than your current string count to allow for future system expansion without needing a full replacement.

Current Capacity & Fuse Sizing

Each string’s maximum current must be calculated and matched to the appropriate fuse rating, The standard rule, per NEC requirements, is to multiply the panel’s short-circuit current (Isc) by 1.25 to determine the minimum fuse rating, For a panel with a 10A Isc, the correct fuse size is 15A, never lower.

Ingress Protection (IP) Rating

For outdoor installations, which represent the vast majority of solar deployments, look for a minimum IP65 rating, This ensures complete protection against dust ingress and resistance to low-pressure water jets, Coastal or harsh industrial environments demand IP66 or even IP67 for superior protection against high-pressure water and corrosive salt air.

Certifications & Compliance

Only select combiner boxes that carry internationally recognized safety certifications, In North America, UL 1741 is mandatory, Globally, IEC 61439-2 governs the structural and electrical safety of the enclosure, while IEC 61643-31 specifically covers surge protection devices (SPDs) designed for photovoltaic applications.

Monitoring Capabilities

For commercial and utility-scale systems, smart combiner boxes with per-string current monitoring, real-time data logging, and remote communication via RS-485 or Ethernet are worth the investment, They allow early fault detection, reduce unnecessary site visits, and protect long-term energy yield.

Read More : Difference between primary and secondary transformer’s Winding

Types of Combiner Boxes for Solar System

Understanding the different types of combiner boxes for solar system configurations ensures you select the right solution for your specific installation, Each type is engineered for a distinct use case:

Type	Description	Best For
Standard DC Combiner	Combines strings with basic overcurrent protection, no monitoring	Small to mid-size residential & commercial
Smart Combiner	Per-string current sensors, real-time data, remote communication	Commercial, industrial & utility-scale
Explosion-Proof Combiner	Flameproof, waterproof, corrosion-resistant enclosure	Hazardous & harsh industrial environments
AC Combiner	Combines AC outputs from microinverter systems	Residential microinverter setups
AFCI Combiner	Integrates arc-fault circuit interruption for fire safety	Rooftop residential & commercial buildings
Disconnect Combiner	Built-in rapid shutdown capability for emergency isolation	All grid-tied systems per NEC 690.12

Choosing Between Standard and Smart

For smaller systems where monitoring is handled at the inverter level, a standard combiner box is a cost-effective, reliable choice, For larger installations, particularly those spread across multiple roof sections or ground-mounted arrays, a smart combiner box pays for itself quickly by catching string-level faults before they become costly failures.

Read More : Low voltage switchgear manufacturers

Key Components of Combiner Boxes for Solar System

Every combiner box for solar system use is built around a set of core internal components, each playing a specific protective or functional role, Understanding these components helps you evaluate quality and ensure long-term reliability.

Busbars

Busbars are the conductive metal backbone of the combiner box, They receive the positive and negative leads from all incoming strings and consolidate them into a single output path, Quality busbars are sized for worst-case current and temperature scenarios, undersized busbars overheat, corrode, and fail prematurely.

DC String Fuses or Circuit Breakers

Each input string is protected by a dedicated DC-rated fuse or molded case circuit breaker (MCCB), These devices isolate individual string faults without interrupting the rest of the array, For high-power PV systems, MCCBs rated between 63A and 630A offer robust protection for circuits carrying significant current loads.

Surge Protection Device (SPD)

Lightning strikes and switching transients are among the leading causes of inverter and panel damage in solar systems, A properly installed DC SPD diverts these voltage surges safely to ground before they reach sensitive electronics, For most rooftop applications, a Type 2 DC SPD is sufficient, for high-lightning-risk zones or large metal rooftops, a Type 1+2 SPD is strongly recommended, per IEC 61643-31.

DC Isolator / Disconnect Switch

This switch allows maintenance personnel to fully disconnect the PV array from the rest of the system safely, without shutting down the entire installation, It is a mandatory safety component in most national electrical codes and a critical feature for any professional installation.

Enclosure & Cable Glands

The physical enclosure protects all internal components from environmental exposure, High-quality enclosures are manufactured from UV-resistant polycarbonate or powder-coated steel, with properly sealed cable glands at every wire entry point, An unsealed cable entry compromises the entire IP rating of the box, a common and costly installation mistake.

Communication Module (Smart Models)

In advanced combiner boxes, a built-in communication controller collects data from current sensors on each string and transmits it to an inverter or SCADA system, This enables real-time performance monitoring, automated fault alerts, and remote diagnostics, eliminating the need for manual string-level inspections.

Read More : Choosing the Best Combiner Box Manufacturers for PV Systems

Applications of Combiner Boxes and Where to Use?

The versatility of combiner boxes for solar system projects extends across nearly every segment of the solar industry, Here’s where they deliver the most value:

• Rooftop residential arrays with four or more panel strings, centralizes protection and simplifies wiring to the inverter
• Commercial flat-roof installations, manages large string counts efficiently while enabling per-string performance monitoring
• Ground-mounted utility arrays, distributed placement of combiner boxes across the field reduces long cable runs and improves fault isolation
• Agricultural solar (agrivoltaics), protects systems exposed to dust, humidity, and equipment vibration in farming environments
• Off-grid and hybrid systems, provides organized, protected DC input management for battery-based installations
• Solar-powered EV charging infrastructure, integrates multiple solar strings into a clean, stable DC feed for charging systems

Why Do You Need a Solar Combiner Box?

Without a combiner box, engineers must wire multiple strings directly to the inverter, a setup that quickly becomes disorganized, difficult to maintain, and potentially hazardous as system size grows, Here is why investing in a quality combiner box is one of the smartest decisions in any solar project:

Simplified Wiring Architecture

Instead of running individual string cables across long distances to the inverter, a combiner box consolidates everything locally, reducing cable runs and keeping the installation clean and serviceable for years to come.

Enhanced System Protection

Every string gets its own dedicated overcurrent protection device. If a single string develops a ground fault, short circuit, or abnormal current, its fuse or breaker trips, isolating the problem instantly without impacting the rest of the array, Combined with SPD protection against lightning and switching surges, the entire system becomes significantly more resilient.

Reduced Installation and Maintenance Costs

Fewer long cable runs mean lower material costs and faster installation, During maintenance, technicians can identify and isolate individual strings at a single accessible point rather than tracing cables across the entire roof or field, saving hours of diagnostic time per visit.

Emergency Shutdown Capability

A combiner box equipped with a DC disconnect or rapid shutdown function allows the entire PV array to be de-energized quickly in an emergency, a requirement under NEC 690.12 for all grid-tied systems installed on or within buildings.

Safety Considerations of Combiner Boxes

Safety is non-negotiable when working with DC solar systems, where voltages can exceed 1,000V and arc faults do not self-extinguish the way AC faults do. Here are the critical safety standards and practices every installer must follow:

Compliance with NEC Article 690

NEC 690 governs all PV system installations in the United States, covering conductor sizing, overcurrent protection placement, disconnect requirements, grounding, and rapid shutdown. Combiner boxes must comply with NEC 690.9 for overcurrent protection and NEC 690.12 for rapid shutdown in building-integrated systems.

Mandatory Grounding & Bonding

NEC Articles 250 and 690.43 require the use of an equipment grounding conductor (EGC) for all metal-framed PV systems. All metallic enclosure parts must be bonded together, and ground resistance must be verified to be below 25 ohms per NEC 250.53. Skipping proper grounding increases shock risk, compromises ground-fault detection, and can result in equipment damage.

Arc-Fault Protection (AFCI)

NEC 690.11 mandates listed DC arc-fault circuit interruption (AFCI) protection for PV systems installed on or within buildings, The protection device must detect arcing conditions, interrupt the fault, and provide notification, IEC 63027 establishes the international performance standard for Arc Fault Protection Equipment (AFPE) in PV DC circuits.

Personal Protective Equipment (PPE)

When working on or near energized combiner boxes, Category 2 PPE rated at a minimum of 8 cal/cm² is required, String voltages in a typical solar combiner box range from 300V to 600V DC, and on cold days, open-circuit voltages can spike significantly higher, DC arc flash does not self-extinguish like AC, making proper PPE non-negotiable.

Regular Inspection Schedule

Inspect your combiner box every six months, Check for moisture ingress, corrosion, loose terminals, and SPD status indicators, Replace any component showing discoloration, melted insulation, or red SPD warning indicators immediately.

Why Chkhele’s Combiner Boxes Are the Best to Use?

When it comes to protecting your solar investment, not all combiner boxes are built equal, and Chkhele has engineered its combiner boxes for solar system installations to outperform the competition at every level.

Built to the Highest International Standards

Every Chkhele combiner box is certified to UL 1741, IEC 61439-2, and IEC 61643-31, the gold standard certifications for PV combiner equipment, You get full compliance with NEC 690 requirements right out of the box, eliminating costly inspection failures and rework on your projects.

All-in-One Protection Architecture

Chkhele integrates DC string fuses, Type 2 SPD surge protection, a main DC isolator switch, and a sealed IP65+ enclosure into a single, ready-to-install unit, There’s no need to source and assemble individual protection components separately, everything you need to build a safe, code-compliant system arrives pre-integrated and tested.

Smart Monitoring That Saves You Money

Chkhele’s advanced combiner boxes feature per-string current monitoring with real-time data transmission via RS-485 or Ethernet, Faults, string mismatches, and blown fuses are detected automatically, long before they become expensive problems, For commercial and utility-scale operators, this means fewer site visits, faster diagnostics, and higher lifetime energy yield from every installation.

Engineered for Harsh Environments

From desert heat and sandstorms to coastal salt air and tropical humidity, Chkhele combiner boxes are built for the conditions where solar systems actually operate, With IP66-rated enclosures, UV-stabilized materials, and corrosion-resistant hardware, they deliver reliable performance over a 25-year system lifetime, in any climate.

Scalable Across Every Project Size

Whether you’re commissioning a 10kW residential rooftop or a 50MW utility plant, Chkhele offers combiner box configurations to match, from compact 4-string residential units to high-capacity 32-string commercial models, Every unit is designed with future expansion in mind, so your protection infrastructure grows with your project.

FAQ

How to connect solar panels to combiner box?

Start by de-energizing the system completely before touching any wiring, Assess your string count, calculate cable sizes based on system voltage and current, and select fuses rated at 1.25× the panel’s short-circuit current (Isc), Mount the combiner box as close to the solar array as possible to minimize cable runs and voltage drop, Connect the positive and negative DC cables from each string to their designated input terminals inside the box, observing correct polarity throughout, Route the combined output through the main DC disconnect to the inverter input, Before energizing, use a multimeter to verify voltage output and confirm proper grounding, Always follow local electrical codes and NEC 690 requirements, and when in doubt, consult a licensed solar electrician.

What purpose does a combiner box serve in a PV array?

A combiner box serves as the centralized protection and consolidation point of your PV array, It takes the individual DC outputs from multiple solar panel strings, merges them into a single output circuit, and delivers that combined power safely to the inverter, Beyond simple combination, it houses the overcurrent protection devices that isolate faulty strings without shutting down the entire array, the surge protection devices that guard against lightning and switching transients, and the DC disconnect that allows safe maintenance access, In short, it transforms a complex web of individual string cables into a single, organized, protected power feed, making your solar system safer, easier to maintain, and more reliable over its entire operational lifetime.

Sources:

• ratedpower.com, Solar Combiner Box Complete Guide
• solarpermitsolutions.com, Do You Need A Solar Combiner Box? 2025 Guide

Low voltage switchgear products are vital elements for controlling, protecting, and distributing electrical power for systems of up to 1 kV. This range includes circuit breakers, distribution boards, motor control centers, and protection devices. They help systems remain operational and fault-free, enabling reliability.

What is low voltage switchgear ?

Low voltage switchgear is an electrical system that provides control, protection, and power distribution for circuits that work at voltage levels of 1 kV or less. Its functional units include circuit breakers, switches, fuses, and protection relays that control the flow of electrical energy to keep the system safe and operational. They also provide the detection of system faults, such as overloads and short circuits, and provide the capability to isolate and clear the affected areas quickly.

Low voltage switchgear is used in homes, offices, and industrial applications. Providing fault detection and safe isolation enhances the operational safety, and an effective power distribution system ensures safe energy use. Additionally, new features in these systems allow digital control and monitoring, which greatly increases the effectiveness and control.

Read More : Metal-Clad Switchgear vs Metal-Enclosed

Core Components of low voltage switchgear products

The low voltage switchgear products contain main integral parts to guarantee safety and higher level of control and protection

• Many types of circuit breakers offer protection from overload and short circuit by interrupting the flow of current.
• Disconnect switches make it possible to safely isolate the equipment for maintenance and during a fault.
• Fuses offer simplified over current protection by disrupting a circuit that exceeds the limit.
• Busbars help in distribution of electrical power within the switchgear systems.
• Protection relays: identify possible faults and enact the required protection.
• Meters and Indicators provide insight on the operational behavior on the system.

Read More : difference between primary and secondary transformer’s Winding

How to choose the best low voltage switchgear products’ Manufacturer

Safety, performance, and reliability in the long run give a more complex picture as different parts of an electrical distribution system give different answers to the questions and choosing the right low voltage switchgear manufactures is more complex.

• Compliance with standards: Nominated manufacturers of IEC3 61439, UL and all other global recognized standards provide safety and performance.
• Ability to manufacture: Quality is produced with the aid of the developing engineered skilled and usable production abilities and researched and developed to an advanced level that is all.
• Quality, Control and Testing: A sure and confirm to the three of the following as opposed to numerous to ensure the reliability and use of the practice as opposed to the theoretical.
• Range of the products: A variety of the panels applications differing from MCC, PCC, and the distributing panels solves the problems of manufacturers to choose.
• Ability to customize: Is flexibility to the three projects specific to the voltage, the load, and the environment.
• Support after the sales: The long-term operation of the system is more important than reliability of the technical assistance, spare parts, and maintenance support.
• Matching the technical parameters: Confirm that there is a mismatch system compatibility.

Read More : Low voltage switchgear manufacturers

Integrating Smart Technology in low voltage switchgear products

The application of advanced technology on low voltage switchgear products is an important step to provide real-time monitoring, automation, and smart protective functions to modern electrical distribution systems.

• Real-time monitoring provides tractable and continuous flow of data and information on voltage, current, temperature, and other systems.
• Smart protection relays enable quick and timely fault detection and better coordination of protection devices.
• Predictive maintenance provides information on anticipated equipment failure and offers solutions to down time.
• Communication integration offers connections to SCADA and other energy management systems.
• Data analytics improves performance and enhances decision making.

Read More : Choosing the Best Combiner Box Manufacturers for PV Systems

Arc Flash Mitigation Technologies in Modern LV Switchgear

While talking about innovations in LV switchgear, we must mention dealing methods with arc flashes to boost safety and reduce risks for people and equipment.

• Arc detection systems: Use optics and current measurement systems to detect arc-related faults and make arc-fault-related trip activations.
• Circuit breakers with fast response to interrupt fault current and reduce dangers of arc and damage.
• Arc resistant enclosures: Contain and redirect arc energy to avoid contact with personnel.
• Interlocking with zone selective with protective devices, it enables faster and selective fault removal.

Preventive Maintenance Procedures for Low Voltage Power Products

There are many procedures to make regular inspection and maintenance.

• Visual inspection to check  signs of wear, signs of corrosion, connections, and overheating of components.
• Checking connections to ensure all screws and bolts holding the terminals and busbars are tight.
• Electrical testing and insulation resistance and continuity testing.
• Thermal testing to find components that are suddenly hot or showing abnormal hot spots.
• Making functional testing to make sure that protection devices and circuit breakers are working well.

Common causes of failure in low voltage switchgear products

When low voltage switchgear understanding, explaining key causes of breakdowns increases reliability, safety, and long-term performance of electrical systems.

• Overloading: Components are damaged due to heat from excessive current.
• Poor maintenance: A lack of servicing and inspections leads to gradual deterioration of the device.
• Loose connections: Creates arcing, heat buildup, and failure.
• Insulation breakdown: The aging and contamination of insulation leads to a loss of dielectric strength.
• Environmental factors: performance is affected by dust, moisture, and corrosion.
• Faulty components: Protective systems are compromised by bad breakers or relays.

Why is Chkhele the best switchgear manufacturer ?

Chkhele earns its position as top switchgear manufacturer from strong engineering skill, high quality production, and being modular and reliable for power solution delivery worldwide.

• The ability to stay within global and non-national boundaries on regulations: This means that the product is marked to be within IEC, and all other rules that govern the safety and quality.
• Technical means of creation: The ability to make a product advanced is determined by the ability to produce at a level where quality is ensured and production is at high levels and precision is the goal.
• Range of product: This means that low, medium, and high switchgears of all varieties and purposes are manufactured.
• Testing: Routinely, The object being tested is the performance of the product and to be sure the product is reliable and safe.
• The ability to customize: This means that there is a possibility of creating a solution that is tailor built for the situation and the environment of the project.
• Knowledge is a power when it comes to creating: The ability to design comes from powerful and experienced people.
• The ability to create a product is the primary goal, Still systems need to be supported and this becomes a goal in its own right.

FAQs

What does IEC 61439 mean for low voltage switchgear quality?

IEC 61439 specifies requirements for the design, testing and performance of low voltage switchgear assemblies on an international scale. Standardizing testing and performance requirements ensures the assemblies’ safety, reliability, effective management of temperature rise, short circuit strength, and real life operational performance.

Why is the form of internal separation important in LV panels?

 It is important to enhance safety by isolating functional units, reducing fault propagation, improving maintenance access, and operational continuity of the electrical systems.

The choice between metal-clad switchgear vs metal-enclosed is a critical technical decision for industrial power distribution projects that require high reliability, This selection impacts long-term safety and operational continuity, as each design differs fundamentally in its internal compartmentalization, protection levels, and voltage management, By understanding these technical distinctions, engineers can ensure that their electrical infrastructure meets specific project demands while minimizing risk, This guide provides a detailed analysis of both systems to help you make an informed procurement decision for your facility while ensuring the highest safety standards.

What is metal-clad switchgear ?

Metal-clad switchgear is a type of power distribution panel designed specifically for medium-voltage applications, where each internal component is housed in its own grounded metal compartment per IEEE C37.20.2.

Internal Design

• Every component (circuit breakers, busbars, and cable connections) is separated by an individual metal barrier.
• This prevents any electrical fault from spreading to adjacent units.

Voltage Range and Draw-Out Breakers

• It operates in the medium-voltage range of 2.4 kV to 38 kV.
• Uses draw-out circuit breakers that allow any unit to be removed for maintenance without shutting down the entire system.
• Automatic Shutters
• Live compartments close automatically when any unit is removed.
• Provides direct protection to maintenance personnel during servicing operations.

Read More : difference between primary and secondary transformer’s Winding

What is metal-enclosed switchgear ?

Metal-enclosed switchgear is the broader category under which several types fall , all housing their components within a single metal enclosure per IEC 62271-200.

Single Enclosure Structure

All components including breakers, busbars, and cable connections share one enclosure without internal metal barriers, simplifying the design and reducing initial cost.

Voltage Range and Application

Primarily suited for low-voltage systems up to 1 kV with medium-voltage versions available, it is used in applications with less complex protection requirements.

Maintenance and Access

Accessing any single component typically requires shutting down the entire section, which directly affects operational continuity in sensitive facilities.

Read More : Low voltage switchgear manufacturers

Metal-clad switchgear vs metal-enclosed

The core difference in comparing metal-clad switchgear vs metal-enclosed centers on internal compartmentalization, protection level, and voltage range , in a global market valued at USD 116.9 billion in 2024 per IMARC Group.

The following table summarizes the key differences between both types:

To simplify the metal-clad switchgear vs metal-enclosed comparison, the following table summarizes the key differences:

Feature	Metal-Clad	Metal-Enclosed
Compartmentalization	Individual metal compartments per component	Single shared enclosure
Voltage Range	2.4 kV , 38 kV	Up to 1 kV (medium-voltage versions available)
Circuit Breakers	Draw-out, removable	Fixed in most cases
Arc Protection	High , fault contained within its compartment	Basic , fault may spread
Cost	Higher	Lower
Standard	IEEE C37.20.2	IEC 62271-200

Read More : Choosing the Best Combiner Box Manufacturers for PV Systems

Space Requirements in metal enclosed vs metal clad switchgear

The debate over metal-clad switchgear vs metal-enclosed also involves space requirements, which are a decisive factor in designing electrical rooms.

Depth and Width

Metal-clad panels are deeper due to separate compartments, but allow stacking breakers two-high in a single 36-inch-wide section, reducing the overall horizontal footprint significantly.

Maintenance Clearances

Metal-clad requires wider front-access corridors for safely pulling out breakers, while metal-enclosed offers greater layout flexibility due to its smaller overall dimensions.

Future Expansion

Metal-clad supports modular additions without modifying the original structure, making it the preferred choice for facilities planning future capacity growth.

Typical Applications for Metal Clad Switchgear in Industrial Plants

Metal clad switchgear dominates critical industrial applications , with 30,000 arc flash incidents recorded annually per the 2020 Industrial Safety and Hygiene Report, advanced protection is a necessity, not an option.

Chemical and Petrochemical Plants

Used in production lines and substations within chemical and petrochemical plants, where arc flash risk threatens both personnel safety and operational continuity simultaneously.

Power Generation Facilities

The first-choice solution in conventional and renewable power stations, ensuring any fault is isolated without triggering a full system shutdown.

Data Centers and Critical Infrastructure

Data centers, hospitals, and airports rely on it to guarantee uninterrupted power supply and drive downtime as close to zero as possible.

Beyond the Initial Purchase Price of Switchgear

In the metal-clad switchgear vs metal-enclosed evaluation, looking beyond the initial purchase price is critical, While the upfront cost is lower for one, a professional Life Cycle Cost (LCC) analysis.

• Downtime Prevention: Because metal-clad units allow for maintenance on individual breakers while the rest of the bus remains energized, facilities avoid the massive financial losses associated with full-plant shutdowns.
• Longevity: The superior insulation and compartmentalization of metal-clad designs reduce the rate of component degradation, leading to a longer operational lifespan and higher resale or scrap value.
• Insurance Premiums: High-safety specifications often lead to lower insurance premiums for industrial facilities, as the risk of a catastrophic, facility-wide fire is significantly mitigated by arc-containment features.

Why choose Chkhele switchgears for your project ?

Chkhele switchgears are engineered to meet the highest reliability and safety standards in industrial projects, in a sector projected to reach USD 172.3 billion by 2033 per IMARC Group.

International Standards Compliance

Chkhele products comply with IEC 62271-200 and IEEE C37.20.2, ensuring acceptance in international projects and government tenders without technical barriers.

Performance in Harsh Environments

Designed to operate under high heat, humidity, and dust conditions , making them fully suited for the Middle East, Africa, and demanding industrial environments.

End-to-End Project Support

Chkhele provides integrated engineering support from design through commissioning, reducing delivery timelines and ensuring each product precisely matches project specifications.

Smart Monitoring & Digital Integration in Modern Metal-Clad Systems

Modern power distribution is moving toward Industry 4.0, and the latest metal-clad designs are at the forefront of this digital transformation.

• Predictive Maintenance: Unlike traditional systems, modern metal-clad switchgears can be equipped with thermal sensors and humidity monitors that provide real-time data to operators.
• IoT Connectivity: Systems like those offered by Chkhele can integrate with SCADA and Building Management Systems (BMS), allowing engineers to monitor breaker status and energy quality remotely.
• Enhanced Safety: Digital relaying and remote-racking capabilities allow personnel to operate the switchgear from a safe distance, virtually eliminating the risk of injury during switching operations.

FAQ

Is metal-clad switchgear always more expensive than metal-enclosed?

Generally yes, as compartmentalized design requires more materials and precision manufacturing, However, a proper evaluation must account for the full lifecycle cost , metal-clad significantly reduces maintenance expenses and production downtime over time, making it the more economical choice in many long-term scenarios.

Which type offers better protection against internal arc faults?

Metal-clad provides substantially higher protection by containing any arc flash within the compartment where it originates, without affecting adjacent units, Metal-enclosed lacks sufficient internal barriers, allowing faults to spread and cause wider system damage.

Why is metal-clad switchgear considered safer for maintenance personnel?

Its compartmentalized design allows a technician to work on one component while the rest of the system remains energized, Combined with the automatic shutter system that closes live openings the moment any unit is removed, exposure risk to live voltage is reduced to the lowest possible level.

References:

• IMARC Group , Global Switchgear Market Report 2024
• IEEE Xplore , Safety Benefits of Arc-Resistant Metal-Clad Switchgear
• Electrical Engineering Portal , IEC 62271-200 Installation Guidelines
• IndustryARC , Switchgear Market & Arc Flash Statistics

Understanding the difference between primary and secondary transformer windings is essential for every electrical engineer and technician, Each winding performs a distinct role in energy transfer and voltage transformation , knowing this difference helps you select the right transformer and ensure optimal efficiency for any electrical application.

Key Functions of the Primary Winding in Transformers

The primary winding is the electrical entry point of a transformer , it receives alternating current (AC) from the power source and converts it into a varying magnetic field through the iron core, directed toward the secondary winding.

Key functions of the primary winding include:

• Receiving AC voltage from the utility grid or connected power source.
• Generating a varying magnetic field that travels through the iron core to the secondary winding.
• Setting the transformation ratio based on its number of turns relative to the secondary.
• Providing electrical isolation between the input and output sides.

Read More : Low voltage switchgear manufacturers

Key Functions of the secondary Winding in Transformers ?

The secondary winding is the output side of the transformer , it receives the varying magnetic field and converts it into electrical voltage suited for the connected load, based on Faraday’s law of electromagnetic induction.

Key functions of the secondary winding include:

• Inducing electrical voltage from the magnetic field generated by the primary winding.
• Supplying the electrical load, whether household appliances or industrial equipment.
• Determining the output voltage level based on its turns ratio with the primary.
• Carrying higher current in step-down transformer applications.

Read More : Choosing the Best Combiner Box Manufacturers for PV Systems

difference between primary and secondary transformer

The core difference between the primary and secondary transformer windings spans function, voltage level, number of turns, and wire thickness, According to ScienceDirect, modern transformers achieve efficiency levels between 97% and 99.5%.

The following table summarizes the key comparison points:

Feature	Primary Winding	Secondary Winding
Function	Energy input & magnetic field generation	Energy output & load supply
Voltage Level	Higher (typically)	Lower in step-down transformers
Number of Turns	More turns in step-down	Fewer turns in step-down
Wire Thickness	Thinner wire (lower current)	Thicker wire (higher current)
Grid Connection	Connected to the power grid	Connected to the load or device

Voltage Transformation Ratios and Turns Count Relationships

The transformation ratio is defined by the mathematical relationship between the number of turns in each winding, The U.S. DOE 2016 standard mandates an efficiency range of 97.89% to 99.28% for three-phase distribution transformer systems.

Transformer types based on turns ratio are as follows:

1. Step-Down Transformer Primary turns > Secondary turns → Voltage decreases.
2. Step-Up Transformer Secondary turns > Primary turns → Voltage increases.
3. Isolation Transformer Equal turns on both sides → Voltage remains unchanged.

Core Formula:
V1V2=N1N2\frac{V_1}{V_2} = \frac{N_1}{N_2}V2​V1​​=N2​N1​​

Where:

• V = Voltage
• N = Number of turns in the winding

Reference: IEEE C57.12 Transformer Standards

Operational Characteristics of Secondary Winding in Load Delivery ?

When a load is connected to the secondary winding, the transformer’s operational profile shifts significantly, According to the International Energy Agency (IEA), transformer losses represent 30–40% of total power system losses globally.

The most notable operational characteristics include:

• Voltage regulation Secondary voltage fluctuates with load changes; the smaller this fluctuation, the more efficient the transformer.
• Mutual inductance A continuous magnetic energy exchange occurs between both windings through the iron core.
• Exciting current With no load connected, the primary draws 2–5% of full-load current to energize the iron core, per IEEE C57.12.
• Transmission losses The World Bank reports average global electricity losses of 5–8% annually , significantly reduced by high-efficiency transformers.

Features of Chkhele’s transformer

Chkhele transformers are built to the highest international standards, in a global market valued at USD 21.9 billion in 2024 (GMInsights), with steadily rising demand for high-efficiency primary and secondary transformer solutions.

Key features of Chkhele transformers include:

• Precise transformation ratio,Tightly controlled turns ratios ensuring stable output voltage.
• Superior electrical isolation Strong insulation between primary and secondary windings to protect connected equipment.
• EcoDesign Tier 2 compliance Reduces annual energy losses by 20–25 MWh, saving $15,000–$25,000 per year per the European Commission EcoDesign Directive.
• Versatile applications Suitable for industrial, commercial, and residential use.
• International standard compliance Meets IEC 60076 and IEEE C57.12 specifications.

Common Mistakes in Primary and Secondary Transformer Installation

Common installation mistakes cause direct operational losses , the World Bank reports that average global electricity transmission losses range between 5–8% annually, a portion of which stems from installation errors.

Key mistakes to avoid:

• Reversing winding connections Connecting the load to the primary winding instead of the secondary damages the transformer and creates serious electrical hazards.
• Neglecting voltage regulation Failing to measure secondary voltage fluctuation under load causes instability that damages connected equipment.
• Exceeding load capacity Operating the transformer beyond its rated capacity raises temperature and significantly shortens its service life.
• Poor ground insulation Improper earthing exposes both equipment and personnel to serious electrical safety risks.
• Skipping periodic inspection Neglecting maintenance of both primary and secondary windings leads to gradual insulation degradation and efficiency loss.

FAQ

Can the secondary winding be used as a primary input in a transformer

Transformers are inherently non-directional devices, so reversing the windings’ roles in a primary secondary transformer is theoretically possible, However, this requires verifying that the electrical insulation and wire ratings can handle the new input voltage , otherwise the transformer may sustain damage or fail to perform correctly.

Why is the secondary wire often thicker in step down transformers

In step-down transformers, output voltage decreases while current increases proportionally to preserve power balance (P = V × I), Thicker wire is essential to safely carry this higher current without excessive heat buildup , which explains the clear wire thickness difference between the two windings.

How to Select the Right Transformer for Industrial Applications

Selecting the right transformer for industrial applications depends on multiple technical and financial factors, in a market valued at USD 21.9 billion in 2024 (GMInsights) with continuously growing industrial demand.

Key selection criteria include:

• Required voltage level Define the transformation ratio between the primary and secondary winding based on your facility’s operational needs.
• Load capacity (KVA) Calculate total expected load with a safety margin of at least 20–25%.
• Operating environment Choose between dry-type or oil-immersed transformers based on temperature and humidity conditions.
• Efficiency standards Ensure the transformer complies with IEC 60076 or DOE 2016 to guarantee minimum energy losses.
• Ease of maintenance Prefer transformers with smart monitoring systems to minimize operational downtime.

References:

• International Energy Agency (IEA)
• U.S. Department of Energy (DOE)
• World Bank
• ScienceDirect
• Stanford University
• GMInsights

 Low voltage switchgear manufacturers are essential to developing electrical systems that allow for safe distribution, control, and protection of electrical systems up to 1 kV. These manufacturers create and bring to market distribution and low voltage switchgear panel, circuit breaker systems, and control systems for residential, commercial and industrial applications, ensuring operational reliability, fault protection, and adherence to international safety and operational standards.

How to Choose low voltage switchgear manufacturers ?

There are many factors to choose the best manufacturer as the following:

• Compliance with standards: Products should follow IEC international safety and performance standards and other applicable standards.
• Quality of components: Circuit breakers, enclosures, and internal parts should be reliable.
• Manufacturing capability: State-of-the-art production equipment and processes will ensure consistency and quality.
• Type and routine testing: Certification for electrical and mechanical reliability should be confirmed.
• Customization: low voltage switchgear panel should  be customized to suit different loads  and application requirements.
• Technical support: Engineering support, documents, and post-sale support should be available.

Read More: Choosing the Best Combiner Box Manufacturers for PV Systems

ARC Flash Mitigation by Low Voltage Switchgear Manufacturers

Lv switchgear manufacturers look for many methods  to improve safety, protect equipment, and reduce risks when developing arc flash mitigation technology.

• Fast-acting protection devices: For circuit breakers, in terms of adjustment, relay devices are able to capture and interrupt arc faults for the purpose of losses being minimal.
• Zone-selective interlocking (ZSI): Protective devices are coordinated to quickly isolate an area fault while the rest of the system remains functional.
• Arc flash detection systems by optical cut of current faults and current triggers.
• Remote operation: The switching can be done from a distance to reduce the operator’s risk.
• Maintenance-friendly design: Inspection should  be safe and protective measures to minimize risks of arc faults.

Quality Standards Followed by Low Voltage Switchgear Manufacturers

Low voltage switchgears manufacturers must follow many quality standards to guarantee clients’ trust:

• IEC 61439 concerning low voltage switchgear assemblies: Design validation, temperature rise, and safe operation of low voltage assemblies.
• Quality management systems: ISO 9001 certification for consistent improvement of production processes.
• Control of material quality: Long term reliability of specific and raw materials.
• Short circuit withstand testing: testing switchgear fault current management.
• Ingress protection for installation environments-usually concerning dust and water of varying protection IP ratings.
• Thermal performance: Making testing in many temperature conditions to guarantee stability of performance

Digital Integration by Low Voltage Switchgear Manufacturers

 Lv switchgear manufacturers are utilizing digital integration methods due to the inceasing demands of modern applications to foster enhanced monitoring, control, and efficiency for smarter, safer, and more reliable electrical distribution systems.

• Operation management is enhanced with real-time tracking of many parameters lke  voltage, current, temperature, and system status.
• Remote control: operators can perform switching tasks from far control positions, or after geographically removed from the system.
• Predictive maintenance is made possible with the analysis of operational data to detect anomalies.
• SCADA systems and building management systems can be incorporated with various communication protocols.
• System performance can be optimized with data logging, operational tracking, and system optimization analysis.

Why Chkhele is the best of low voltage switchgear manufacturers

Flexibility, Commitment and Quality Engineering to Global Standards are the Key Elements that distinguish Chkhele from its competitors in the Low Voltage Switchgear Industry.

• Engineering Excellence. Responsive Engineering to Global Standards, regarding design and manufacture, compliant to IEC (International Electrotechnical Commission) and other internationally recognized safety and performance standards.
• High quality of components used such as circuit breakers, enclosures and internal parts.
• Quality assurance as comprehensive internal (routine and type) testing of the electrical, thermal and mechanical performance of the circuit breakers, are renowned in the industry.
• Flexibility. Tailor made solutions, in weathertight enclosures which meet specific environmental and application conditions.
• Digital Solutions. Modern smart grids capability through integrated control, monitoring and protection.
• Engineering. Design, consultative and project specific responsive engineering
• Service. Installation and maintenance to assure the function of the plant for the desired years.

Types of low voltage switchgear Chkhele can provide

Chkhele can provide many types of low voltage switchgear that are suitable for many uses.

• Main Distribution Boards (MDB): Central boards that distribute power from transformers to a number of downstream circuits.
• Motor Control Centers (MCC): Used to control and protect electric motors, and come with starter and protection devices.
• Power Control Centers (PCC): Control and distribute electrical power to big industrial loads and other systems.
• Automatic Transfer Switch (ATS) Panels: that are used to switch automatically between main and standby power sources.
• Feeder Pillars: Outdoor distribution devices for utilities and infrastructure projects.

FAQs

How do manufacturers ensure the safety of low voltage switchgear?

To prove the safety of low voltage switchgear, manufacturers test their components, comply with the IEC 61439, and utilize a variety of safety measures including protection devices, insulation, grounding, mitigation of arcing problems, and thermal control, as well as safe design enclosures.

Do low voltage switchgear manufacturers provide smart monitoring?

Yes, many low voltage switchgear manufacturers provide smart monitoring, as well as fault detection and SCADA or energy management system integration.

Do manufacturers offer both fixed and withdrawable designs?

Most low voltage switchgear manufacturers offer both fixed and withdrawable designs. Fixed designs are less expensive and more compact, while withdrawable designs are better for maintenance, provide faster replacement, and allow more operational flexibility.

In a solar power system, safety and protection equipment such as fuses and surge protection devices are integrated into a PV combiner box. The equipment inside the box protects each PV module from fault currents and lightning surges. The PV combiner box is a critical component and a good quality box makes the whole PV system more reliable. Solar combiner box manufacturers provide a high quality box to reduce the number of wires and connectors that are tied into the inverter, increase the energy collection from the PV modules, and be more reliable as the combiner box will be the first component to fail in the system.

What is a combiner box ?

A combiner box is among the different types of equipment used in solar energy systems. first, it serves to merge the outputs of several PV strings into one connector. Second, it contains a number of protective devices to keep the system from damage. These devices include fuses, circuit breakers, and lightning surge protection to prevent damage to the system from lightning surges.

Maintaining solar systems is simplified using a combiner box because malfunctioning PV strings can be quickly isolated from the rest of the solar system. The large commercial and utility scale solar systems are commonly where combiner boxes are used. The combiner boxes are used in large scale solar energy systems to meet standard requirements for long term operation and safety.

The Different Types Of Solar Combiner Boxes?

Depending on system designs, voltage levels, and installation specifications, various solar combiner box manufacturers produce them to optimize both the efficiency and the safety of the operation of PV systems.

• DC combiner boxes: Combine multiple outputs of photovoltaic (PV) strings providing one DC output to the inverter.
• AC combiner boxes: Combine outputs of several inverters on the AC side, for feeding to the grid or a load (distributed load).
• String combiner boxes: Designed for smaller systems; they integrate several PV strings with fuses and protection devices, providing means of disconnection.
• Central combiner boxes: Used in large-scale solar plants; they manage multiple inputs with a higher current-carrying capacity.
• Intelligent combiner boxes: Have monitoring devices that provide information and results related to the performance of the individual strings as well as the voltage and current in real time.

How to Choose combiner box manufacturers ?

The importance of selecting among solar combiner box manufacturers is to assure the safety, efficiency, and longevity of the solar power systems in different operating and environmental conditions.

• To ensure the manufacturer is compliant to IEC standards, and standards of equivalent electrical safety and performance.
• Used components, which are of high quality, are tested and proven to be reliable and to be of high quality.
• Customization, to design combiner boxes pertaining to specific system and project criteria.
• Experience in manufacturing solar and electrical devices.
• Testing and quality control, to ensure that the devices are inspected and tested in performance, to ensure that they are tested and proven to be reliable.
• Technical Support, is made available for the engineering installation, and after the installation, to make the system to work.

Essential Safety Standards for Combiner Box Brands

Safety standards must be adhered to when choosing brands of combiners boxes to ensure safe, reliable, and durable function of the electrical components in the solar power system.

• Compliance to IEC standards means that the enclosure of the low voltage assembly covers as well as the performance and safety of the design are all compliant to IEC 61439 standards.
• Overcurrent protection means that the PV strings are protected against faults by means of appropriately rated fuses or circuit breakers.
• Surge protection means the use of surge protection devices (SPDs) to assure protection to the components against lightning and transient overvoltages.
• Ingress protection (IP rating) enclosures should be IP65 rated to guarantee that the enclosure is weatherproof and for outdoor use.
• Grounding and bonding must be designed so that the personnel are protected and the system is safe.
• Thermal management means that the components must be designed in a way that heat is adequately dissipated to avoid overheating and failure of the components.

Global Supply Chain Success of Chkhele Combiner Box Brand

With advanced manufacturing capabilities and international certifications, the Chkhele Combiner Box brand has succeeded in the global supply chain by integrating its extensive exports with its ability to meet the varying demands of solar projects across the globe.

• Extensive global export network: Combiner box products are supplied to different continents: Europe, Africa, the Middle East, and Asia to help international solar projects.
• International standards compliance: Products are market-accepted because they are designed and certified of IEC, and CE standards among others.
• Strong manufacturing capabilities: Sophisticated factories and automated systems allow large scale and homogeneous supply to all global demands.
• Integrated research and development capabilities: Innovative engineering teams devoted to research and development on products improvements to ‘s solar technology.
• Increased global adoption by the diverse application support of products used in solar systems of residential, commercial, and utility scale.
• Timely project execution in international markets with established export experience: reliable logistics and delivery.
• Consistent products quality and ISO certified reliability achieved by quality assurances systems.

Quality Control Practices at Combiner Box Plants

Safe and renewable energy combiner boxes help sustain the function and longevity of solar energy installations. Quality assurance at combiner box plant’s help warranties the reliability and performance of each combiner box produced.

1. Checking the quality of the box enclosures, fuses, surge protective devices, and internal wiring prior to production
2. Follow standardized assembly guidelines to ensure the same installation process, and provide equal torque and tightness to each connector.
3. Quality remains constant throughout the assembly process by catch defects and deviation earlier in the process.
4. Examine components of the box to ensure durability of temperature, humidity, and UV exposure.
5. Prior to shipment, ensure all parts and components of the box meet IEC and other guidelines of the customer’s country.
6. Collect, synthesize, and analyze data to show compliance to government standards.
7. Identify weaknesses in the assembly and correct them.

Why Chkhele is the best combiner box manufacturers

Chkhele is one of the top combiner box manufacturers thanks to its excellent products, innovative designs, and exceptional global compliance and reliability in residential, commercial and utility-scale solar projects.

• Custom-fabricated boxes for different voltage and environmental conditions
• High-grade materials in surge protective/weather-resistant housing
• Compliant to IEC and CE certification criteria
• Processed in state-of-the-art facilities
• Engineering and installation assistance and after-sales support
• Timely provision of products for solar projects across the globe
• Smart system and monitoring solutions
• Residential and commercial utility-scale proven trusted installs

FAQs

Do manufacturers provide smart monitoring features in their boxes?

Different combiner box manufacturers provide smart monitoring capabilities including tracking string currents and voltages in real time, notifying users of faults, communicating data for maintenance, and improving maintenance and performance tracking of systems.

How do manufacturers test their products for extreme weather?

To verify how combiner boxes endure extreme weather, manufacturers conduct simulated environments testing, such as temperature and humidity cycling, UV exposure, salt fog, and rain tests.
