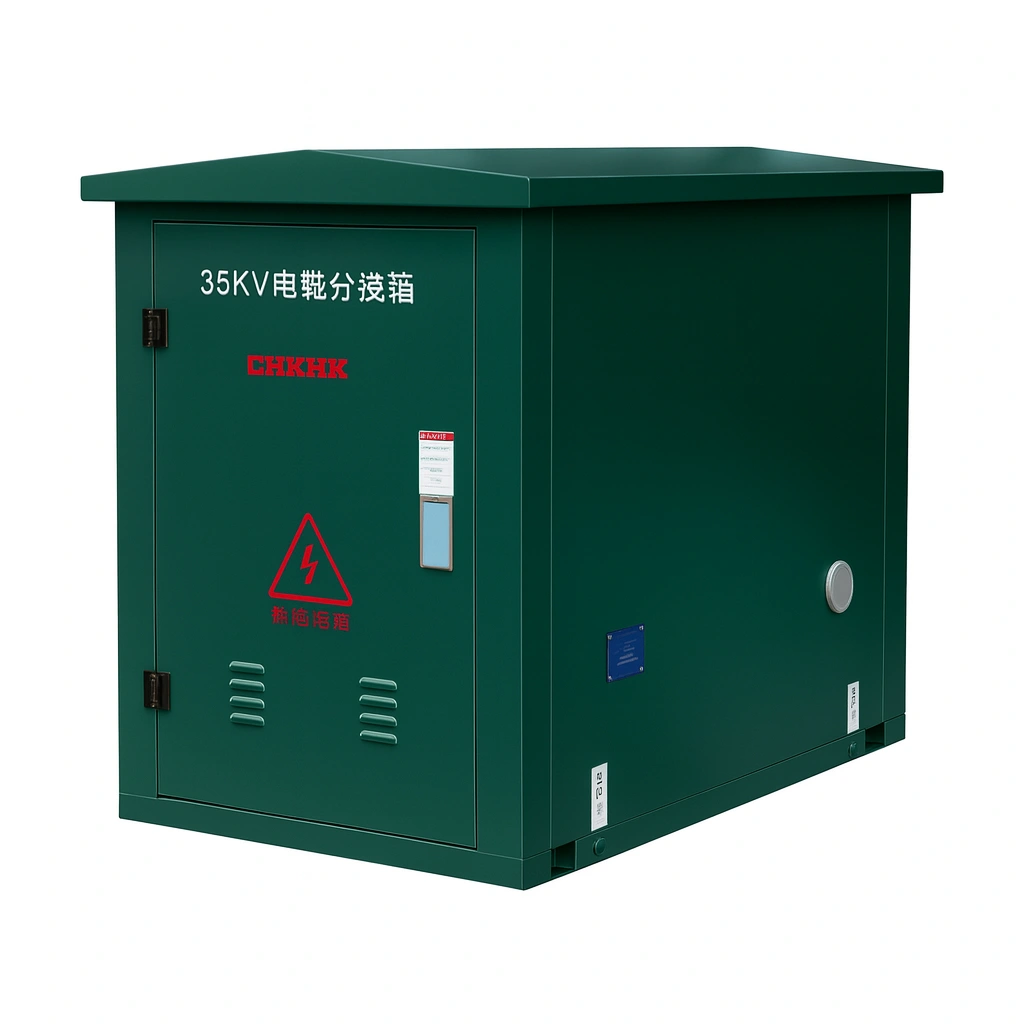

DWF-35 outdoor AC cable distribution box is widely used in the power distribution network system in recent years in the cable engineering equipment, its main characteristics are two-way door, the use of butt bushing as the connection busbar, with the advantages of small length, clear cable arrangement, three-core cable does not need a large span crossing, etc. The cable glands used comply with DIN47636 standards.
Generally, the rated current of 630A bolt is used to fix the connected cable gland.
- Ambient temperature: Air temperature: +40°C, low temperature -30°C
- Wind speed: equivalent to 34m/s (not more than 700Pa)
- Humidity: The average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%
- Shockproof: Horizontal acceleration is not more than 0.4m/s, vertical acceleration is not more than 0.15m/s
- Installation site inclination: not more than 3°
- Installation environment: The surrounding air should not be obviously polluted by corrosive and flammable gases, water vapor, etc.,
- There is no violent vibration at the installation site.
- If you order this product beyond the above conditions, please consult with us.
